Genetic competition in tree breeding trials

Saulo F. S. Chaves

2025-01-21

Introduction

This vignette describes the complete workflow for considering genetic competition in tree breeding trials using gencomp. More details about the theory underlying gencomp can be found at Ferreira et al. (2023) and Chaves et al. (2025).

To begin, load gencomp using the code below. Note that gencomp has a strong dependency on asreml, which is a package that is not freely available. Thus, it is vital that asreml is installed. The ggplot2 (Wickham 2016) library will also be loaded for customizing the plots. This is not mandatory.

library(gencomp)
library(ggplot2)

Data description

gencomp has two available datasets. The representative for tree breeding is called euca, whose phenotypes were simulated using parameters from a real data of an intermediate-stage clonal eucalyptus trial. It has the mean annual increment values (m³ ha^-1 year^-1, column MAI) of a total of 100 clones (“C001” to “C100” in clone column) laid out in a randomized complete block design with 13 replicates (“B01” to “B13” in block column). The experimental unit is the same as the observation unit, i.e., there is a single plant per plot. The plants are spaced by 2 and 3 meters in the row and column directions, respectively; and the position of each tree in the field is found in columns row and col. Phenotypes of two ages are available (“3y” and “6y” in age column). This trial was not organized into contiguous blocks: the first six blocks were situated in one area, while the other seven were in another. The dataset includes a column labelled area, distinguishing between these areas. We will use a single age to illustrate gencomp’s pipeline:

data(euca)
dat = euca[which(euca$age == "6y"),]
head(dat)

age	area	block	clone	tree	dist_row	dist_col	row	col	MAI
6y	A1	B02	C015	104	2	3	40	4	NA
6y	A1	B02	C003	105	2	3	40	5	2.92
6y	A1	B02	C048	106	2	3	40	6	31.14
6y	A1	B02	C034	107	2	3	40	7	39.56
6y	A1	B02	C008	108	2	3	40	8	44.28
6y	A1	B02	C028	109	2	3	40	9	76.17

Building the competition matrix

The competition matrix (or incidence matrix of competition effects), henceforth depicted as $\mathbf{Z}_c$ is indispensable for the analysis. In the case of tree breeding, due to the large area occupied by a single tree and large spacing between trees, the standard procedure is to compute the directional competition intensity factors for each direction by filling the positions corresponding to the candidates neighbouring a focal tree in the respective row of $\mathbf{Z}_c$. Currently, gencomp has three options for computing the directional competition intensity factors:

• Muir (2005) (MU) $\rightarrow$ The competition intensity factors are the inverse of the distance between the focal individual and its neighbors in the diagonal, row and column directions:

$$\begin{cases} f_d = \frac{1}{\sqrt{\mathcal{D}^2_r + \mathcal{D}^2_c}} \\ f_r = \frac{1}{\mathcal{D}_r} \\ f_c = \frac{1}{\mathcal{D}_c} \end{cases}$$

where $f_r$, $f_c$ and $f_d$ are the directional competition intensity factors for a given plot (i.e., a given row of $\mathbf{Z}_c$) in the row, column and diagonal directions, respectively; $\mathcal{D}_r$ and $\mathcal{D}_c$ are the distance between the focal individual and its neighbors in the row and column directions, respectively.

• Cappa and Cantet (2008) (CC) $\rightarrow$ the distance and the number of neighbours in each direction are considered. This method assumes that the distance between the focal individual and its neighbours in the row is the same as the distance between the focal individual and its neighbours in the column:

$$\begin{cases} f_d = \frac{1}{\sqrt{2 \left(n_c + n_r\right) + n_d}} \\ f_r = \sqrt{\frac{2}{2 \left(n_c + n_r\right) + n_d}} \\ f_c = \sqrt{\frac{2}{2 \left(n_c + n_r\right) + n_d}} \end{cases}$$

where $n_r$, $n_c$ and $n_d$ are the number of neighbors in the row, column and diagonal directions, respectively

• Costa e Silva and Kerr (2013) (SK) $\rightarrow$ considers the number of neighbors, the distance between the focal individual and its neighbors and the difference between distances in the row and column directions:

$$\begin{cases} f_d = \frac{p}{\sqrt{\left(n_r p^4 \right) + \left(n_r p^2 \right) + \left(n_c p^2 \right) + \left(n_d p^2 \right) + n_c }} \\ f_r = f_d \sqrt{1 + p^2} \\ f_c = \frac{f_d \sqrt{1 + p^2}}{p} \end{cases}$$

where $p = {\mathcal{D}_c}/{\mathcal{D}_r}$.

Once the direction competition intensity factors are estimated, the mean competition intensity factor ($\phi$, or CIF, in the function’s output) is obtained as follows:

$$\hat{\phi} = \overline{n_r} \overline{f}_r + \overline{n}_c \overline{f}_c + \overline{n}_d \overline{f}_d$$

To build the $\mathbf{Z}_c$, gencomp has the function prepfor. Here is how to use it employing the example dataset:

comp_mat = prepfor(
  data = dat,
  gen = 'clone',
  area = 'area',
  plt = 'tree',
  age = NULL,
  row = 'row',
  col = 'col',
  dist.col = 3,
  dist.row = 2,
  trait = 'MAI',
  method = 'SK',
  n.dec = 3,
  verbose = TRUE,
  effs = c("block")
)

data is the working dataset. gen, row, col, and trait are the column names in the dataset that contain the information of genotypes, row, column, and trait, respectively. dist_row and dist_col are the distances between rows and columns, respectively. method refers to the method to be used to compute the competition intensity: it should be "MU", "CC" or "SK" (as detailed above). area and age are NULL by default, but if you have non-contiguous blocks (as we have in our example) and multi-age (repeated measures) data (see vignette("multi_age)"), you can add the name of the columns that contain this information in the data frame. n.dec is the number of decimal digits to show in $\mathbf{Z}_c$. The plt argument is optional (defaulting to NULL) and allows users to specify the name of the column containing plot information. This helps ensure that the functions follow the same order as the data collection in the field. If plt is not provided, the function will automatically generate a column to differentiate the plots, ordering the dataset by row and column. The effs argument accepts a string vector with the names of columns representing other effects to be considered in the model fitting step. For instance, the effect of block (block). Finally, verbose controls whether a progress bar is printed in the console or not.

The prepfor function generates a list of class comprepfor. This list has four elements:

1. A data frame with the inputted data and $\mathbf{Z}_c$ merged:

comp_mat$data[1:5, c(1:5, (ncol(comp_mat$data)-4):ncol(comp_mat$data))]

C001	C002	C003	C004	C005	dist_row	dist_col	row	col	MAI
0	0	0	0	0.48	2	3	29	4	46.02
0	0	0	0	0.50	2	3	29	5	54.07
0	0	0	0	0.32	2	3	29	6	NA
0	0	0	0	0.00	2	3	29	7	40.02
0	0	0	0	0.00	2	3	29	8	76.32

2. A data frame containing the phenotypic records of each focal tree and its neighbors:

head(comp_mat$neigh_check)

gen	row	col	y_focal	y_row	n_row	y_col	n_col	y_diag	n_diag	y_neigh
C070	29	4	46.02	54.07	1	NaN	0	1.74	1	27.91
C071	29	5	54.07	46.02	1	1.74	1	22.79	1	23.52
C090	29	6	NA	47.04	2	22.79	1	12.16	2	28.24
C096	29	7	40.02	76.32	1	22.57	1	34.69	2	42.07
C083	29	8	76.32	40.02	1	46.60	1	22.57	1	36.40
C060	29	9	NA	51.18	2	NaN	0	46.60	1	49.65

3. The $\mathbf{Z}_c$per se:

comp_mat$Z[1:5, 1:5]

C001	C002	C003	C004	C005
0	0	0	0	0.48
0	0	0	0	0.50
0	0	0	0	0.32
0	0	0	0	0.00
0	0	0	0	0.00

4. The mean competition intensity factor:

comp_mat$CIF
#> [1] 2.291523

comprepfor objects are compatible with the S3 method plot, which can be used to generate a heatmap illustrating the field trial, and box-plots with each candidate’s performance.

plot(comp_mat, category = "heatmap")

Heatmap representing the grid, in which the cells are filled according to the phenotype value of each plot (blank cells are missing values)

plot(comp_mat, category = "boxplot") + theme(axis.text.x = element_blank())

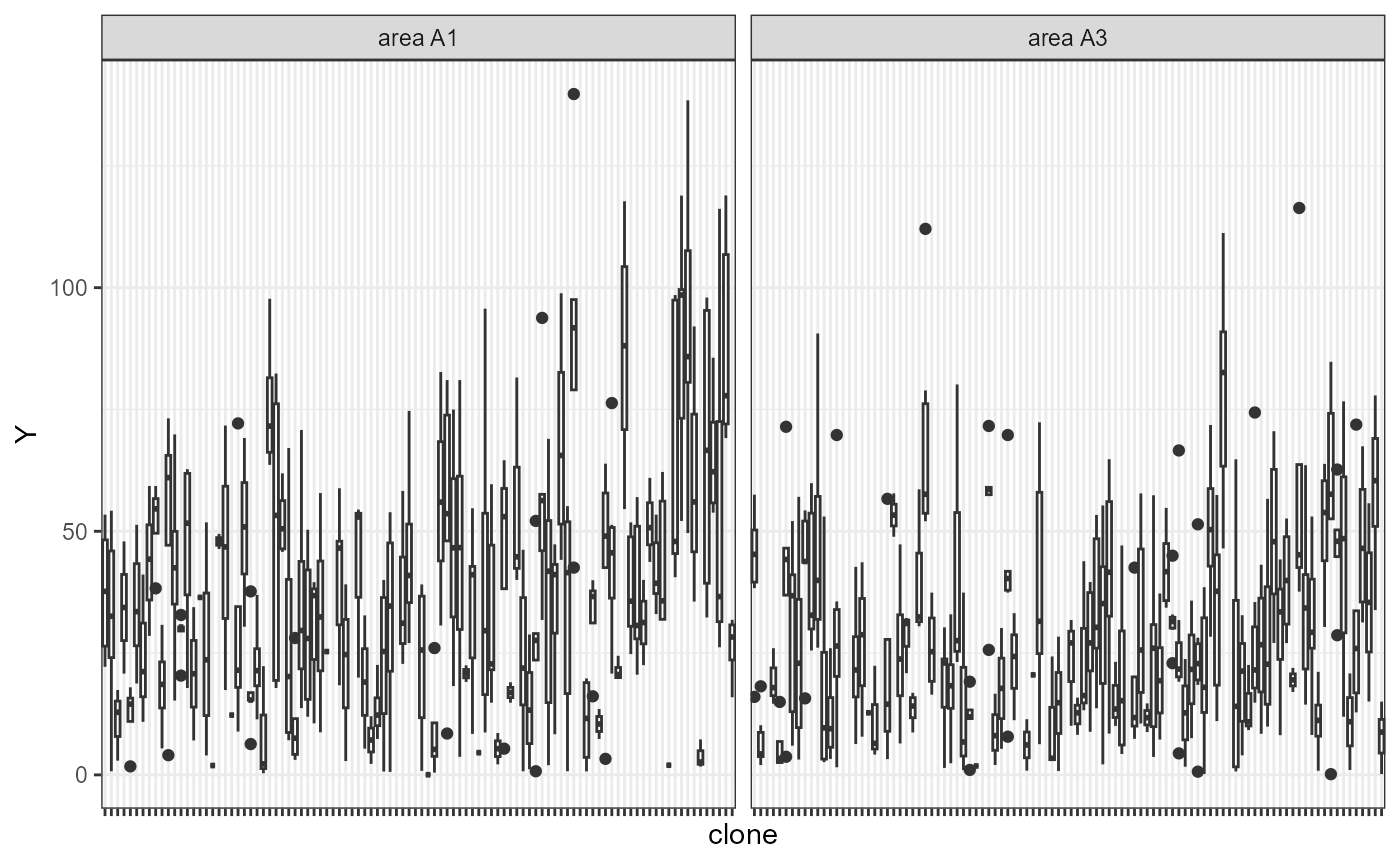

Boxplots depicting the phenotypic performance (y-axis) of each selection candidate (x-axis). The candidates’ names were removed for better visualization

The summary(comprepfor) function returns the number of phenotypic records, number of selection candidates, number of rows and columns, and the number of ages (if applicable) and areas (if applicable).

summary(comp_mat)
#>    MAI clone row col age area
#> 1 1144   100  26  44   0    2

Fitting the model

A general spatial-genetic competition model can be represented by:

$$\mathbf{y} = \mathbf{X} \boldsymbol{\beta} + \mathbf{Z}_g \mathbf{g} + \mathbf{Z}_c \mathbf{c} + \mathbf{Z}_p \mathbf{p} + \boldsymbol{\varepsilon}$$

where $\mathbf{y}$ is the vector of phenotypic records, $\boldsymbol{\beta}$ is the vector of fixed effects, $\mathbf{g}$ is the vector of direct genetic effects (DGE), $\mathbf{c}$ is the vector of indirect genetic effects (IGE), $\mathbf{p}$ is the vector of other random effects, and $\boldsymbol{\varepsilon}$ is the vector of spatially correlated errors. $\mathbf{X}$ is the incidence matrix of the fixed effects, $\mathbf{Z}_g$ is the DGE incidence matrix, $\mathbf{Z}_c$ is the IGE incidence matrix (built using prepfor), and $\mathbf{Z}_p$ is the design matrix of other random effects. The dimensions of $\mathbf{Z}_c$ are the same as $\mathbf{Z}_g$. The spatially correlated errors are distributed as $\boldsymbol{\varepsilon} \sim \mathcal{N}\{\mathbf{0}, \sigma^2_\varepsilon[\mathbf{AR1}(\rho_C) \otimes \mathbf{AR1}(\rho_R)]\}$, where $\sigma^2_\varepsilon$ is the spatially correlated residual variance, $\mathbf{AR1}(\rho_C)$ and $\mathbf{AR1}(\rho_R)$ are the first-order autoregressive correlation matrices in the column and row directions, and $\otimes$ is the Kronecker product. If area is not NULL (like in the example), heterogeneous residual variances and particular autocorrelations are obtained per area. If cor = TRUE (default, see below), the function will fit a model in which $\mathbf{g}$ and $\mathbf{c}$ are correlated outcomes of the genotypic effects decomposition. They both follow a Gaussian distribution, with mean centred in zero, and covariance given by:

$$\mathbf{\Sigma_g} = \begin{bmatrix}\sigma_{\text{g}}^2 & \sigma_{\text{gc}}\\\sigma_{\text{gc}} & \sigma_{\text{c}}^2\\\end{bmatrix}\otimes {{\mathbf I_V}}$$

where $\sigma_{\text{g}}^2$ is the DGE variance, $\sigma_{\text{c}}^2$ is the IGE variance, and $\sigma_{\text{gc}}$ is the covariance between DGE and IGE. An alternative parametrization considers that $\mathbf{g}$ and $\mathbf{c}$ are independent. If this is not true for the trait and/or population under investigation, assuming independence will add bias to the results.

The function that fits the genetic-competition linear mixed model uses the average information algorithm implemented in the asreml package (The VSNi Team 2023). Check the function’s structure using the example dataset:

model = asr(
  prep.out = comp_mat,
  fixed = MAI ~ 1,
  random = ~ block,
  lrtest = TRUE,
  spatial = TRUE,
  cor = TRUE
)

prep.out is a comprepfor object. fixed is a formula, declared just like is usually done for regular asreml models. random is also a formula, but this argument should just be altered if other random effects than the genotypic effects should be considered in the model. This is because all pre-programmed models already consider DGE and IGE, as previously described. In our example, we added the block effect, which was declared in the effs argument of comprepfor. lrtest defines if hypothesis tests using likelihood ratio tests should be done. spatial determines if a regular genetic competition model (spatial = FALSE) or a spatial-genetic competition model (spatial = TRUE) should be fitted. Finally, cor dictates if the function will fit a model considering the covariance between DGE and IGE (cor = TRUE) or not (cor = FALSE). asr can receive other arguments passed on to the asreml function (see ?asreml for more information). The output of the asr function is an object of classes asreml and compmod. Since it holds the asreml class, it is suitable for using with S3 methods like plot, summary, predict, update, resid and others (see help("asreml.object")).

Extracting the results

The function to obtain the main results from the compmod object is called resp, and its structure is exemplified below using the example dataset:

res = resp(
  prep.out = comp_mat,
  model = model,
  weight.tgv = FALSE,
  sd.class = 1
)

model is the compmod object obtained from the asr function. weight.tgv receives a logical value, and determines if the reliability should be used as weight to compute the total genotypic value (TGV) or not. sd.class is a weight to multiply the standard deviation of competition effects when determining the competition classes (defaults to 1). The resp function returns an object (list) of classes comresp and comprepfor. This object is compatible with the S3 methods plot, print and summary. A detailed description of the results within the list generated by res is provided below.

Variance components

The data frame with the variance components will yield different results depending on the model. cor(IGE_DGE), which represents the correlation between DGE and IGE; DGE and IGE will always be present in variance component obtained from compmod objects. The residuals will have different forms depending if area and age are NULL or not in the prepfor function, and if spatial is TRUE or FALSE in the asr function.

res$varcomp

	component	std.error	z.ratio	bound	%ch
block	26.1337	12.9333	2.0207	P	0.0
cor(IGE_DGE)	-0.7627	0.1350	-5.6514	U	0.0
DGE	215.2442	38.1272	5.6454	P	0.0
IGE	23.0976	7.3133	3.1583	P	0.0
R=area_A1	437.7093	36.9198	11.8557	P	0.0
R=autocor(row):area_A1	0.0054	0.0720	0.0744	U	0.9
R=autocor(col):area_A1	-0.2037	0.0669	-3.0445	U	0.0
R=area_A3	247.9184	20.9541	11.8315	P	0.0
R=autocor(row):area_A3	0.0043	0.0810	0.0525	U	0.1
R=autocor(col):area_A3	0.1057	0.0745	1.4202	U	0.0

Likelihood ratio tests

Available only if lrt = TRUE in the asr function.

res$lrt

effect	LR-statistic	Pr(Chisq)
DGE	217.03194	0.0e+00
IGE	18.29996	9.4e-06

Heritabilities

Available if cor = TRUE in the function asr. Contain the DGE heritability and total heritability Bijma, Muir, and Van Arendonk (2007). The first is the portion of the total variance that refers to the DGE. The latter is a ratio between the sum of the total heritable components against the phenotypic variance, and it is an adjusted estimate of the heritability that considers the competition effects and the covariance between DGE and IGE. The expressions for these heritabilities are given below:

$$H^2_g = \frac{\hat{\sigma}^2_g}{\hat{\sigma}^2_y}$$$$H^2_t = \frac{\hat{\sigma}^2_g + 2\times \hat{\phi} \times \hat{\sigma}_{gc} + \hat{\phi}^2 \times \hat{\sigma}^2_c}{\hat{\sigma}^2_y}$$ with $\sigma^2_y$ being the total phenotypic variance.

res$heritability

	H2direct	H2total
area_A1	0.307	0.128
area_A3	0.420	0.176

Since area is not NULL in our example, and the model estimates heterogeneous residual variances, the heritabilities are particularized per area.

BLUPs

When genetic competition effects are statistically significant, the most appropriate selection unit is the TGV, given by:

$${TGV}_v = \hat{g}_v + \hat{\phi} \times \hat{c}_v$$ where $\hat{g}_v$ and $\hat{c}_v$ are the DGE and IGE of the $v^{th}$ candidate, respectively. If weight.tgv = TRUE in the resp function, the weighted TGV is computed as follows:

$${wTGV}_v = \hat{g}_v \times r_{g_v}^2 + \hat{\phi} \times \hat{c}_v \times r_{c_v}^2$$ with $r_{g_v}^2$ and $r_{c_v}^2$ being the reliabilities of DGE and IGE, respectively.

The comresp object has a data frame containing the DGE and IGE, their standard errors, the competition class of each genotype and the TGV. If other random effects were declared in the model, there will be a further data frame with their BLUPs.

head(res$blups$main)

clone	DGE	se.DGE	rel.DGE	IGE	se.IGE	rel.IGE	class	TGV
C099	31.455	5.207	0.874	-5.103	2.865	0.645	Aggressive	19.762
C075	48.379	4.940	0.887	-13.052	2.888	0.639	Aggressive	18.471
C087	15.902	6.106	0.827	-0.720	2.941	0.626	Homeostatic	14.252
C092	31.636	5.355	0.867	-8.234	2.972	0.618	Aggressive	12.768
C028	27.489	4.993	0.884	-6.662	2.954	0.622	Aggressive	12.224
C073	17.529	5.222	0.873	-2.358	2.809	0.658	Homeostatic	12.125

From this data frame, several information can be extracted. Check out below.

Competition classes

The higher the IGE, the more aggressive is the genotype. Here, we use a modified version of the classification proposed by Ferreira et al. (2023) to define competition classes:

$$\text{Classes} = \begin{cases} \bar{c} - (\tau) sd(c) < \hat{c}_v < \bar{c} + (\tau) sd(c) \rightarrow \text{Homoeostatic} \\ \hat{c}_v > \bar{c} + (\tau) sd(c) \rightarrow \text{Sensitive} \\ \hat{c}_v < \bar{c} - (\tau) sd(c) \rightarrow \text{Aggresive} \end{cases}$$ with $\bar{c}$ being the mean IGE in the population, $\hat{c}_v$ the IGE of the $v^{th}$ genotype, $sd(c)$ the IGE’s standard deviation, and $\tau$ a weight defining the thresholds to declare if a genotype is aggressive, homoeostatic or sensitive.

This classification is illustrated using a density plot, a scatter plot and a heat map representing the field grid. These plots aid in the investigation of the relationship between DGE and IGE, how this dynamics are related to classification, and how aggressive, homoeostatic and sensitive are distributed in the field.

plot(res, category = "class")

Density of IGE values. The area within the distribution is filled according to the competition class

plot(res, category = "DGEvIGE")

Relationship between IGE (x-axis) and DGE (y-axis). The dots are coloured according to the competition class.

plot(res, category = "grid.class")

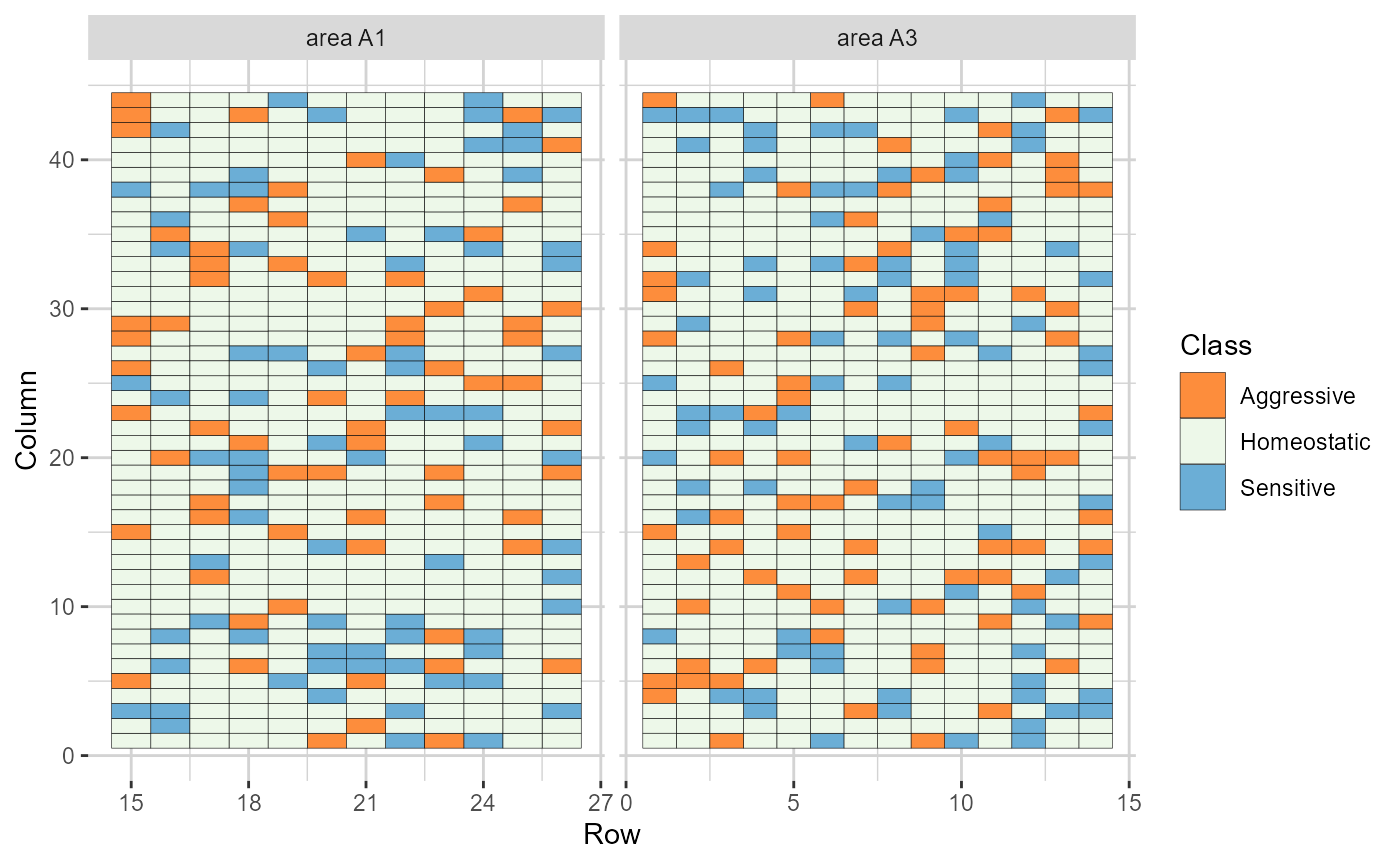

Heatmap representations of the field trial, with cells filled according to the competition class of each genotype

Ranking

Three possible rankings are possible: based on the DGE, the IGE, or the TGV. Note that DGE and IGE have different reliabilities, with DGE’s being usually higher. It is advisable to take this into consideration when making decisions.

plot(res, category = "DGE.IGE") +
  theme(axis.text.x = element_text(size = 4, vjust = .5, hjust = 1))

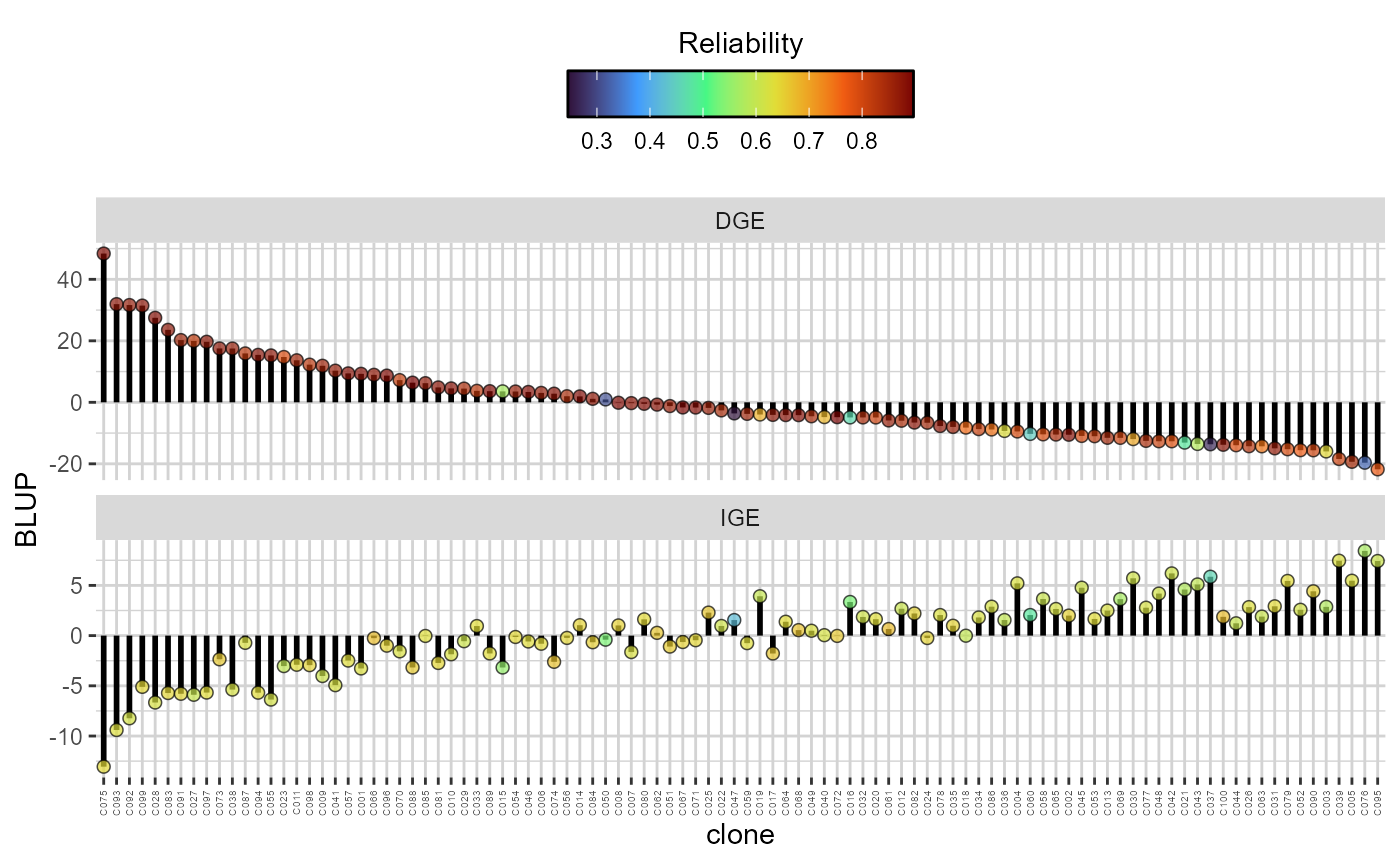

Direct (DGE) and indirect (IGE) genotypic effects ( extit{y}-axis) of each candidate. The plots are in descending order according to the DGE. The colour of the dots reflects the reliability of both the DGE and IGE for each genotype

plot(res, category = "TGV") +
  theme(axis.text.x = element_text(size = 4, vjust = .5, hjust = 1))

Total genotypic value (TGV) (y-axis) of each candidate (x-axis), in increasing order

The distribution of high-performance and/or competitive candidates is also illustrated.

plot(res, category = "grid.dge")

Heatmap representations of the field trial, with cells filled according to the direct genotypic effect (DGE) of each genotype

plot(res, category = "grid.ige")

Heatmap representations of the field trial, with cells filled according to the indirect genotypic effect (IGE) of each genotype

Number of different neighbours

The number of different genotypes as neighbours of the candidates can be evaluated by the figure below. In the example dataset, almost all clones neighboured each other, and most of them had homoeostatic neighbours.

plot(res, category = "nneigh")

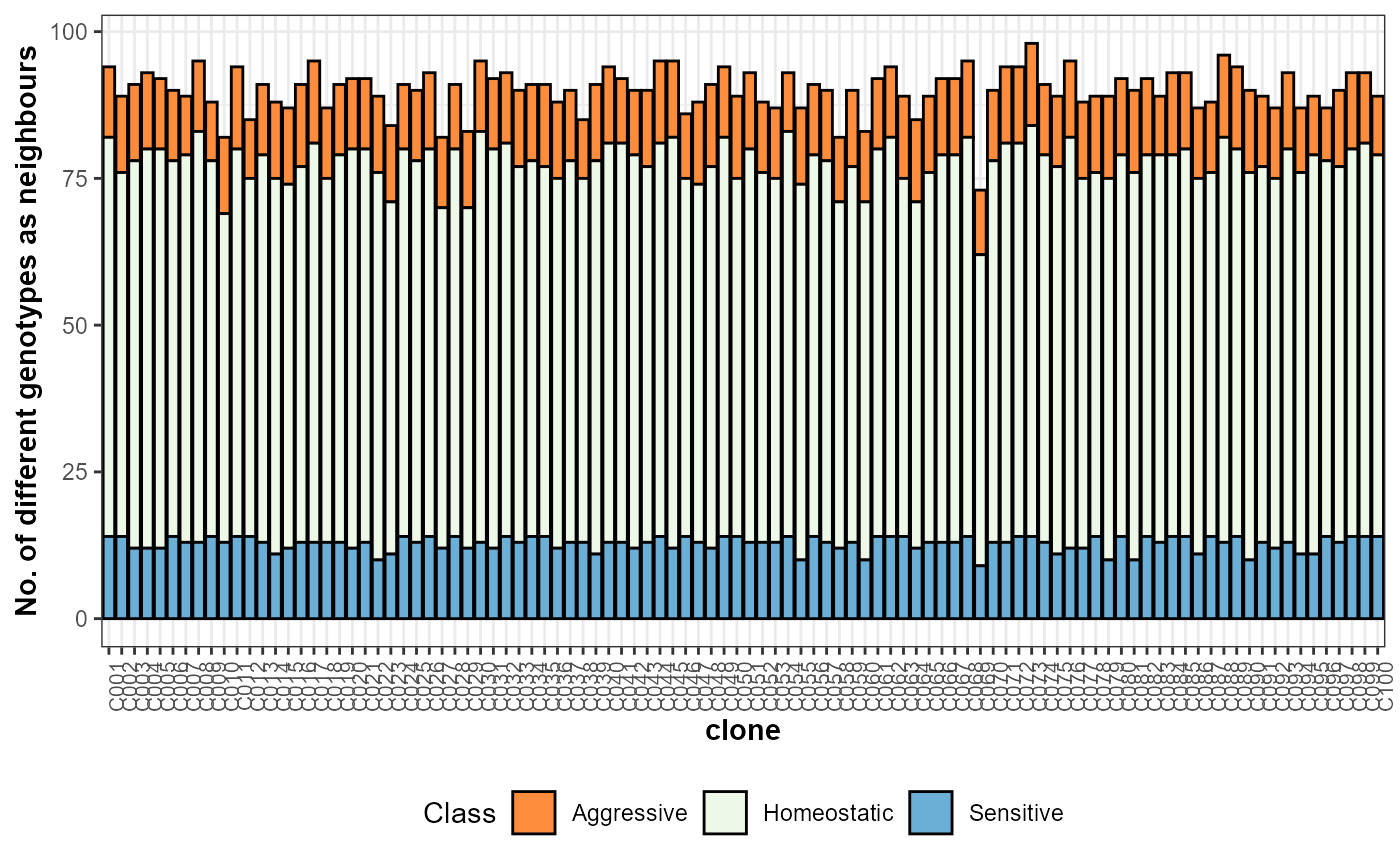

Number of different genotypes as neighbors (total and per competition class) of each selection candidate

Error distribution

The last plot available for objects of class compresp is a heatmap coloured according to the residual value of each plot. This is useful to observe possible trends in the field.

plot(res, category = "grid.res")

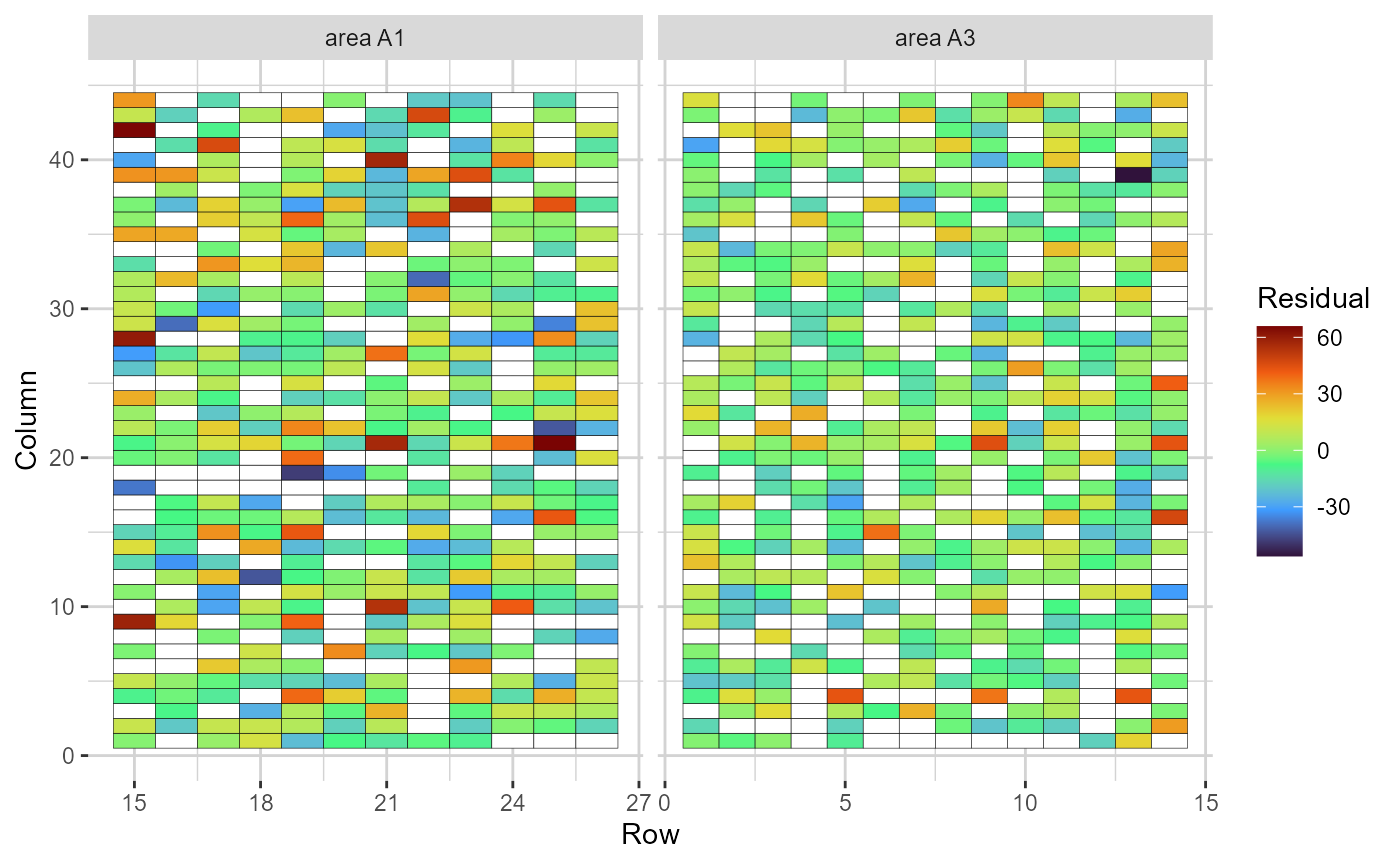

Heatmap representations of the field trial, with cells filled according to the residual value of each plot. Blank cells are missing values

Clonal composites

For tree breeding only, we implemented a function that simulates a grid considering DGE and IGE of a set of clones(Ferreira et al. 2023). They are positioned differently in each simulation, which enables the modification of focal tree-neighbour dynamics. In each simulation, the expected mean of each clone is predicted using the following equation:

$$\hat{y}_{ik} = \hat{\mu} + \hat{g}_i + \sum_{i \neq k}^n \hat{c}_k$$ where $\hat{g}_i$ is the DGE of the focal individual $i$, and $\hat{c}_k$ is the IGE of the neighbour $k$ ($i$ can have up to $n$ neighbors). In addition, one may want to weigh the IGE by the distance between the focal individual $i$ and neighbor $k$ ($\mathcal{D}_{ik}$). In this case, the equation is:

$$\hat{y}_{ik} = \hat{\mu} + \hat{g}_i + \sum_{i \neq k}^n{ \frac{1}{\mathcal{D}_{ik}} \times \hat{c}_k}$$

The composite function will need every piece of information obtained up to now (provided by functions prepfor, asr and resp). Here is the function’s structure, using the example dataset:

cc = composite(
  prep.out = comp_mat,
  model = model,
  resp.out = res,
  d.row.col = c(3, 3),
  d.weight = TRUE,
  nsim = 10,
  verbose = TRUE,
  selected = res$blups$main[order(res$blups$main$TGV, decreasing = T), 1][1:10]
)
#>
#>  The means were predicted considering an area of 9 ha

prep.out, model and resp.out receive objects of class comprepfor, compmod and comresp, respectively. d.row.col is a vector of size two, where the first element is the distance between rows and the second the distance between columns of the simulated grid. selected is a vector with the names of the clones selected to compose the clonal mixture. nsim is the number of grid simulations, i.e., how many field grids will be generated. When nsim > 1 (defaults to 10), the function will estimate the 95% confidence interval of the predicted means using a bootstrap process. d.weight receives a logical value. If d.weight = TRUE (default), the IGE is divided by the distance between the focal tree and its neighbours when the expected mean is estimated. Different clonal mixtures can be tested by declaring different clones in the selected argument. This can be easily done using a loop. In the example, we are using the top ten clones based on the TGV. Here is the result:

	y.pred	CI_0.05	CI_0.95
C023	34.031	33.988	34.072
C028	46.789	46.720	46.860
C066	42.901	42.857	42.945
C073	51.263	51.207	51.316
C075	67.706	67.652	67.762
C083	50.887	50.820	50.948
C087	36.772	36.725	36.824
C092	28.235	28.175	28.292
C093	35.264	35.207	35.329
C099	50.716	50.672	50.756

The predicted mean of this clonal mixture was 44.46.
